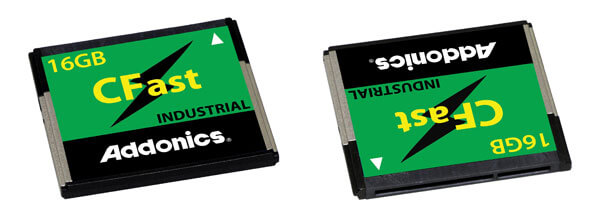

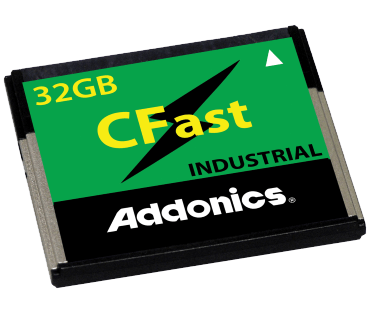

Industrial CFast SLC SSD (model: AFCFAS3W64G-S)

~ Industrial class CFast SLC SSD
~ SATA III 6Gbps interface
~ Choice of 4GB to 32GB capacity
~ Transfer rate up to 530MB/s sequential READ and 150 MB/s sequential WRITE

CATEGORIES: Flash Media

Overview

Addonics' new CFast SSD, redefines the high-speed storage standard. The CFast flash memory with SATA interface features improved write/read performance over traditional Compact Flash flash memory.

Addonics' Industrial class CFast card is one of the most reliable SSDs in the market. Made of SLC NAND flash, the Addonics Industrial CFast card boosts the durability of the card to over 7 times that of commercial-grade MLC SSD. This highly durable CFast card is ideal for mission-critical applications that are deployed in different industries such as data centers, finance, and aerospace or manufacturing facilities with equipment operating in a harsh environment.

The Addonics CFast card is also available in Enterprise-class CFast that is made of MLC flash. This offers a more economical solution for applications or equipment operating in the industrial temperature range. For detailed information on the Enterprise-grade MLC type of CFast card, please visit the following product Enterprise CFast card product web page.

Features

  • Industrial class CFast SLC SSD
  • Great for the following industries: data center, finance, aerospace, manufacturing, and others that require high durability and wide operating temperature range
  • Choice of 8GB - 64GB capacities
  • SATA III 6.0Gbps interface
  • Durability up to 7 times of an average MLC flash
  • Data transfer rate:
    • 8G -  up to 290 MB/s sequential READ and 85 MB/s sequential WRITE
    • 16G, 32G, and 634G - up to 530MB/s sequential READ and 150 MB/s sequential WRITE
  • Size of CF-1
  • Industrial operating temperature: -40°C to +85°C
  • TeraBytes Written (TBW): 3,448TBW for 64GB

Model Capacity NAND type Price Max. Read speed Max. Write speed Operating temp.
AFCFAS3W8G-S 8GB SLC $ 290 MB/sec 85 MB/sec -40°C to +85°C
AFCFAS3W16G-S 16GB SLC $ 530 MB/sec 150 MB/sec -40°C to +85°C
AFCFAS3W32G-S 32GB SLC $ 530 MB/sec 150 MB/sec -40°C to +85°C
AFCFAS3W64G-S 64GB SLC $ 530 MB/sec 150 MB/sec -40°C to +85°C

Specifications

  • Flash type: SLC
  • Compliant with SATA Revision 3.0
  • Advanced Flash management
    • Static and Dynamic Wear Leveling
    • Bad Block Management
    • TRIM
    • SMART
    • Over-Provision
  • Support expanded register for SATA protocol 48 bits addressing mode
  • Power Fail Protection
  • Voltage: 3.3 V +/- 5%
  • Power consumption:
    • Active mode: < 1600mW
    • Idle mode: < 330mW
    • DEVSLP mode: < 5mW
  • Dimension (LxWxH): 36.4mm x 42.8mm x 3.3mm
  • TeraBytes Written (TBW): 3,410TBW for 64GB
  • ECC scheme: Up to 72 bits / 1K Byte
  • UART function
  • GPIO
  • Operating shock rating: 1,500G
  • Vibration: 20G
  • MTBF: > 3,000,000 hours
  • Humidity: RH 95% under 55°C (operational)
  • Complies with Compact flash Association specification standards
  • Operating Temperature:-40°C to +85°C
  • Storage Temperature: -40°C to + 85°C
  • Warranty: 3 year
  • Compliant: RoHS, CE/FCC

Model And Price

Product AFCFAS3W64G-S - (Industrial CFast SLC SSD, 64GB) AFCFAS3W8G-S - (Industrial CFast SLC SSD, 8GB)
Description

Content: 64G Industrial CFast SLC SSD.

Content: 8G Industrial CFast SLC SSD
