Snap-In Double Drive

~ Installs into standard 3.5" drive bay
~ Easy ion and removal of hard drive without any tool or mounting screws.
~ Two drive slots to accomodate up to two 2.5" SATA 1.5Gbps or SATA 3Gbps hard drives or SSD drives of 9...

CATEGORIES: Removable Drive

Overview

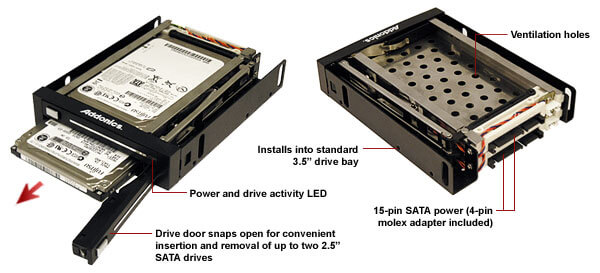

Built on the same reliable and convenient removable mechanism of the Snap-In Mobile Rack, the Addonics Snap-In Double Drive now enables 2.5" SATA hard drives to be use like a tape cartridge in any Desktop, rack mount or industrial PC. Designed to fit inside a standard 3.5" drive bay, the Snap-In Double Drive comes with 2 drive slots to accommodates up to two hard drives. By connecting to a hot swappable SATA controller, the hard drive can be easily added or removed from the system just like an ordinary cassette tape.

For application that requires shock and vibration protection on the hard drive, check out our latest shock mount version, 2.5" Snap-In SP

Features

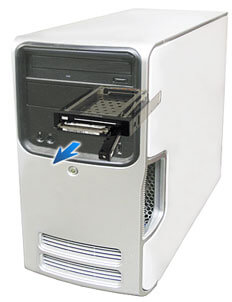

  • Installs into standard 3.5" drive bay
  • Allow adding or removing hard drives from drive bay like drive cartridge
  • Two drive slots to accomodate up to two 2.5" SATA hard drives or SSD drives of 9mm - 9.5mm height
  • Support SATA I, II or III HDD/SSD
  • Sturdy steel construction
  • Great for RAID application (requires an optional SATA RAID controller)
  • LEDs for power and drive activity
  • Supports hot swap (when connects to controller with this feature)
  • Plug and play
  • OS independent

For application that requires shock and vibration protection on the hard drive, check out our latest shock mount version, Snap-In 25 SP

Specifications

Support drive type
2.5" SATA hard drive or SSD  (SATA I, II or III) with drive thickness not more than 9.5 mm
Interface Type:
two combo 7-pin SATA and 15-pin SATA power male connectors. One for each hard drive
Maximum transfer rate
6 Gbps
LED
Power(Blue) and Drive Activity(Orange) LED
Supported OS
any OS that supports SATA drive
Power Supply:
Requires two 15-pin SATA or 4-pin Molex power connector sources
Dimensions:
134mm (L) 102mm (W) x 24mm (H)     Click for detail mechanical drawing
Weight:
282.5g
Storage Temperature:
Range: -30C to +60C
Operating Temperature:
Range: 0C to +55C
Storage Humidity:
5% to 90%
Operating Humidity:
5% to 95%
Warranty:
One Year

System Requirements

  • PC/AT or Compatible System
  • 2 available SATA ports
  • one 3.5" drive bay or 5.25" drive bay*
  • Pentium II or Greater
  • Minimum 64 MB RAM
  • One of the Following Operating Systems:
    DOS, Windows 98SE, Me, NT, 2000, XP, Vista, Windows 7, Linux (Kernel 2.4 and above), Solaris 10 and above, Mac OS X and above

*optional 3.5" to 5.25" bay mounting bracket is required for mounting the Snap-In Double Drive inside the 5.25" drive bay
