2.5" M2/mSATA SSD drive

~ Build your own 2.5" SATA SSD with M2 SATA SSD or mSATA SSD in the capacity of your choice
~ Support M2 SATA SSD
~ Support standard size mSATA SSD
~ No mounting screw is needed for installing either the M2 or mSATA media

CATEGORIES: Converter / Adapter

Overview

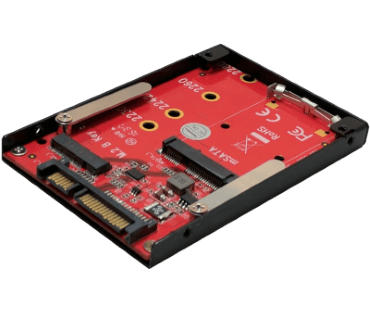

This Addonics 2.5" M2/mSATA SSD drive is a flexible flash drive kit designed to turn a regular M2 (NGFF) SSD or mSATA SSD into a 2.5" SSD. There is no longer a need to have two different flash drive kits for the M2 or mSATA media. The drive frame and the connector mimic the exact size and connector location of a 2.5" SATA hard drive. So once the M2 (NGFF) or mSATA SSD is mounted inside this 2.5" Flash drive kit, it can be used just like a standard 9 mm 2.5" SATA hard drive to directly replace the 2.5" hard drive in Notebook or any computing equipment. This 2.5" Flash drive kit is a simple economical solution to replace a mechanical hard drive with a low power, shock resistant and high performance Solid State Drive.

For more detail of the M2 (NGFF) SSD. please visit the following link http://en.wikipedia.org/wiki/NGFF

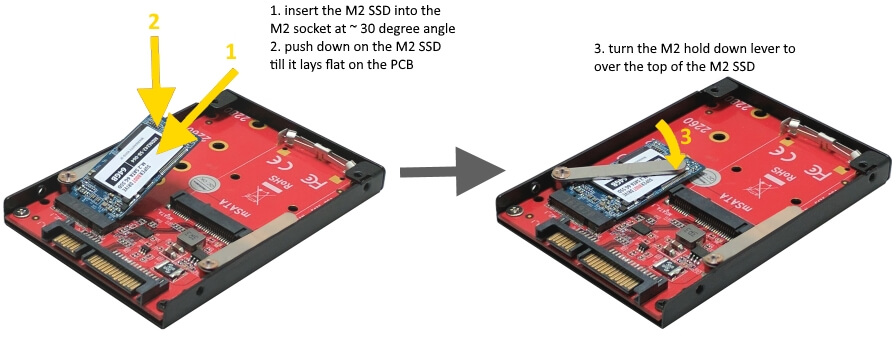

M2 SATA SSD installation

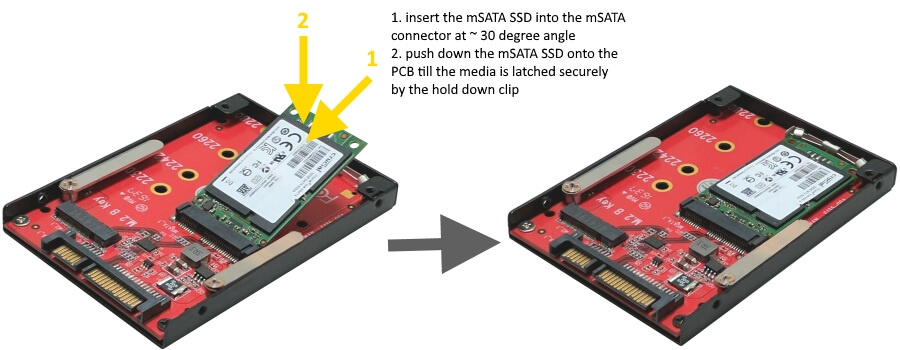

mSATA SSD installation

Using the 2.5" M2/mSATA Flash drive as a 3.5" SATA hard drive

By using the optional 2.5" to 3.5" drive adapter (also called Snap-In 25, model: AE25SN35SA), this 2.5" Flash drive can be used to replace any 3.5" SATA hard drive as shown in the following illustration..

Mounting of the 2.5" M2/mSATA
Flash drive into the removable
tray of the Snap-In 25

Loading the removable tray into the
Snap-in 25, which can be used just
like a 3.5" SATA hard drive
The snap-In 25 can be mounted into a 3.5" drive bay of a Desktop system



Features

  • Build your own 2.5" SATA SSD with M2 SATA SSD¹ or mSATA SSD in the capacity of your choice
  • Support M2 SATA SSD in length of 30, 42, 60 and 80 mm
  • Support standard size and 1/2 size mSATA SSD
  • No mounting screw is needed for installing either the M2 or mSATA media
  • Only M2 SSD is detected when both M2 and mSATA SSD are installed
  • Replace 2.5" hard drive with low power and shock resistant M2 or mSATA SSD
  • Direct replacement for Notebook 9 mm height SATA hard drive
  • Can be used as removable storage media in conjunction with the Addonics Pocket UDD25 or the Internal UDD25
  • Light weight durable aluminum bracket
  • Use as a 3.5" hard drive by using optional 2.5" to 3.5" drive adapter (model: AE25SN35SA)
  • M2 or mSATA flash Card can be the primary bootable device containing the OS and applications
  • High current power regulator onboard to ensure reliable operation of large capacity high performance NGFF media
  • Industrial operating temperature: -40 °C to + 85 °C
  • OS independent. No software driver required

Note
1   There are three types of M2 SSD: M2 SATA SSD, M2 PCIe SSD and M2 NVMe SSD. M2 SATA SSD uses SATA interface, the same interface on SATA hard drive, and is the only type of M2 media supported by this adapter.

Specifications

  • 22-pin SATA and power combo connector (same as 2.5" SATA hard drive)
  • SATA Hot-swappable support when connected to SATA port supporting such feature
  • Maximum transfer rate: 6 Gbps. Actual speed depends on the speed of the M2 or mSATA SSD
  • M2 SATA SSD  and mSATA SSD connectors on board
  • When both M2 and mSATA SSD are installed, only M2 SSD will be detected.
  • Suport M2 SATA SSD media in the length of 30, 42, 60 and 80 mm
  • Support standard size and 1/2 size mSATA SSD
  • Mounting bracket Dimensions: 69.85 mm (W) x 100.2 mm (L) x 9 mm (H) (same as 2.5" hard drive with 9 mm height)
  • Weight: ~ 52 g (1.83 oz) for the flash drive kit only
  • Power: +5V from PC power supply
  • Maximum Current: ~50 mA at 5V (without the flash media)
  • High current power regulator onboard to ensure reliable operation of large capacity high performance NGFF media
  • Industrial operating Temperature: -40 °C to + 85 °C
  • Operating Humidity: 5% - 95% (non condensing)
  • Storage Temperature: -40 °C to + 85 °C
  • Storage Humidity: 5% - 95%
  • Warranty: One Year

Model And Price

Product AD25M2MSA - (2.5" M2 / mSATA Flash drive kit)
Description

2.5" M2 / mSATA flash drive kit with easy media installation or removal design (black color), user guide

Price $27.95
